Beskrivning

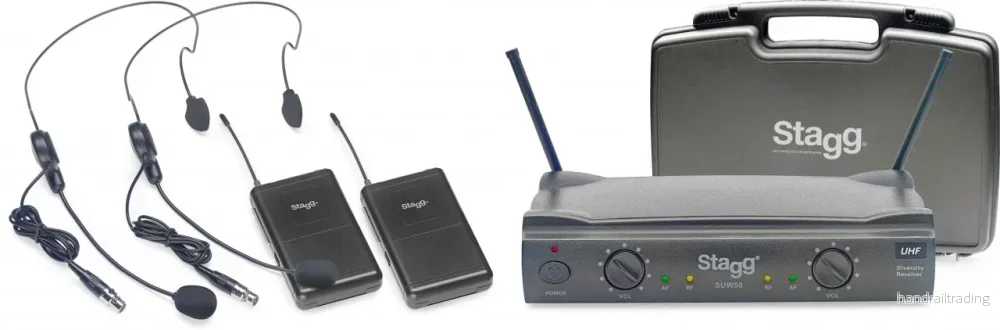

UHF true diversity 2-channel headset wireless system Receiver – Fixed frequencies: 863.8 – 864.5 – Audio output unbalanced: Maximum 5 dBu – Power supply: 12-18 V DC – Power consumption: 150 mA (at 13.5 V DC) – Receiver sensitivity: – 90 dBm Handheld microphones and belt-pack transmitters – Fixed frequencies: 863.8 – 864.5 – RF emitting power: 10 mW – Battery type: 2 x AA battery – Frequency response: 50 – 20 000 Hz – Input sensitivity: 2.1 mV / Pa – Power consumption: 100 mA at 3 V System – Total harmonic distortion: 0.1 % – Signal-to-noise ratio: 96 dB – Fixed frequencies: 863.8 – 864.5 – Operational bandwidth: 300 kHz – Dynamic range: 90 dB – Audio sampling: 24 bits / 48 kHz – Oscillation mode: PLL synthesized – Audio delay: 3 ms – Audio encoder: PT live – Frequency response: 20 – 20 0000 Hz – Working distance: 60 m (200′)
